The Ethernet Node attaches to a wired Ethernet Network and requires a low-cost mains adaptor.  Its small size makes it unobtrusive.

Flange-mounted. 6V to 24V DC 300mA.

Ethernet Nodes can also operate over a HomePlug / PowerLine mains network.

67mm x 50mm x 20mm (L x W x H) excluding connectors.  40g.


The Ethernet Node is also available in a Ruggedised enclosure for hazardous / outdoor use.

Includes an internal power supply and armoured / outdoor cables.

Mains 110V - 240V AC, 2A. Surge protection option.

Sealed to IP66. Glass filled polyester enclosure certified to NEMA 4, 4X standards (UL 508).

160mm x 75mm x 55mm (L x W x H). 1kg.

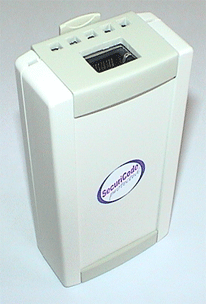

The Ethernet Node is available as a Power over Ethernet only version (PoEthernet Node).

Also available as PoE Adaptor (without Node) for powering (12V or 24V options) and converting non-Ethernet devices (Smoke detectors etc) so they can be monitored by ATLAS.

Wall-mounted.

102mm x 54mm x 30mm (L x W x H).  95g.

Ethernet, Ruggedised Ethernet and PoEthernet Nodes
